105 Series Plastic Actuator Tri-Clamp Angle Seat Valve

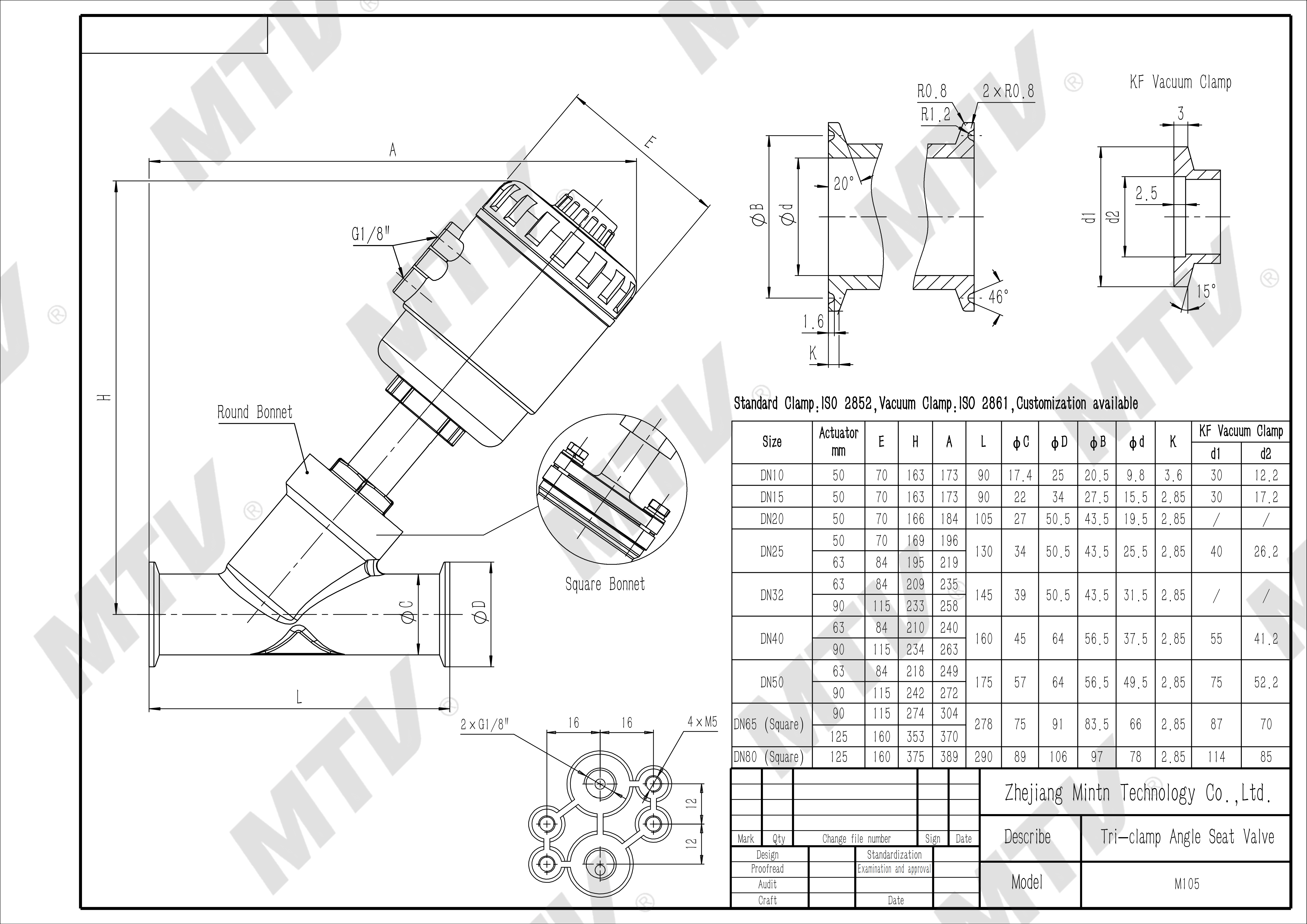

Design Specifications:

Advantages：

◎Compact structure,high circulation capacity.

◎Simple and quick debugging.

◎The valve stem automatically corrects (self-regulates), self-lubricates, and requires no maintenance.

◎Visible position indicator rod.

◎Extremely suitable for high-frequency switching and quantitative operations.

◎It has excellent adjustment characteristics.

◎Universal module options, including control heads, with valve seats for upstream and downstream flow, facilitating control function conversion. Reliable and sturdy sealing components, good sealing when closed tightly, long lifespan.

◎Can be installed in any position (upward, flat, or tilted), with the cylinder standing upright being more suitable.
