HomeProductsAngle Seat Valve103 Angle Seat Valve(Aluminum Actuator)103 Series Aluminum Actuator Flanged Angle Seat Valve

103 Series Aluminum Actuator Flanged Angle Seat Valve

The Angle seat valve is a 2/2 position structure, driven by a pneumatic piston. It utilizes the actuator piston to provide linear force to push the valve seat away from the valve seat, serving as a type of pneumatic control valve.

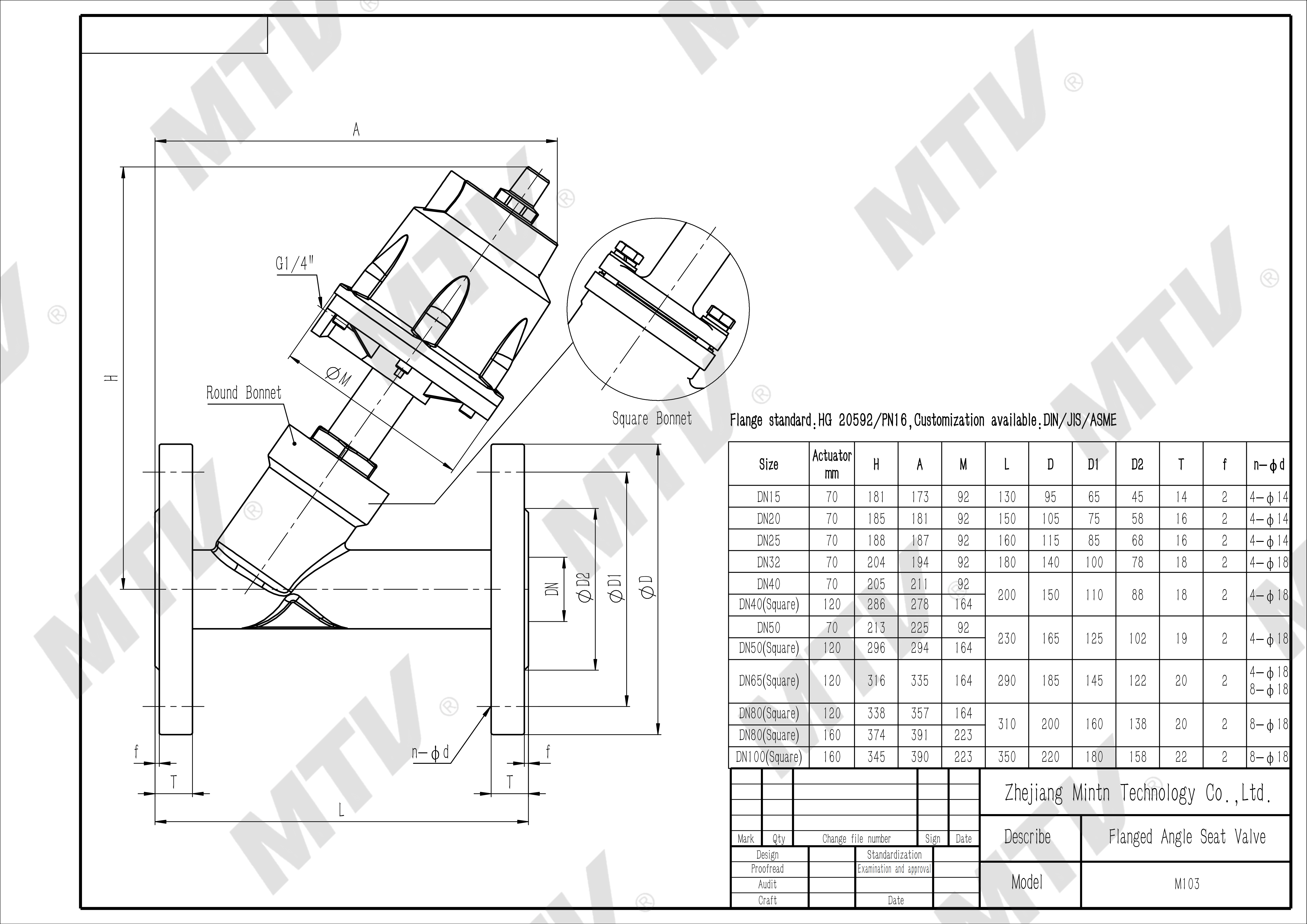

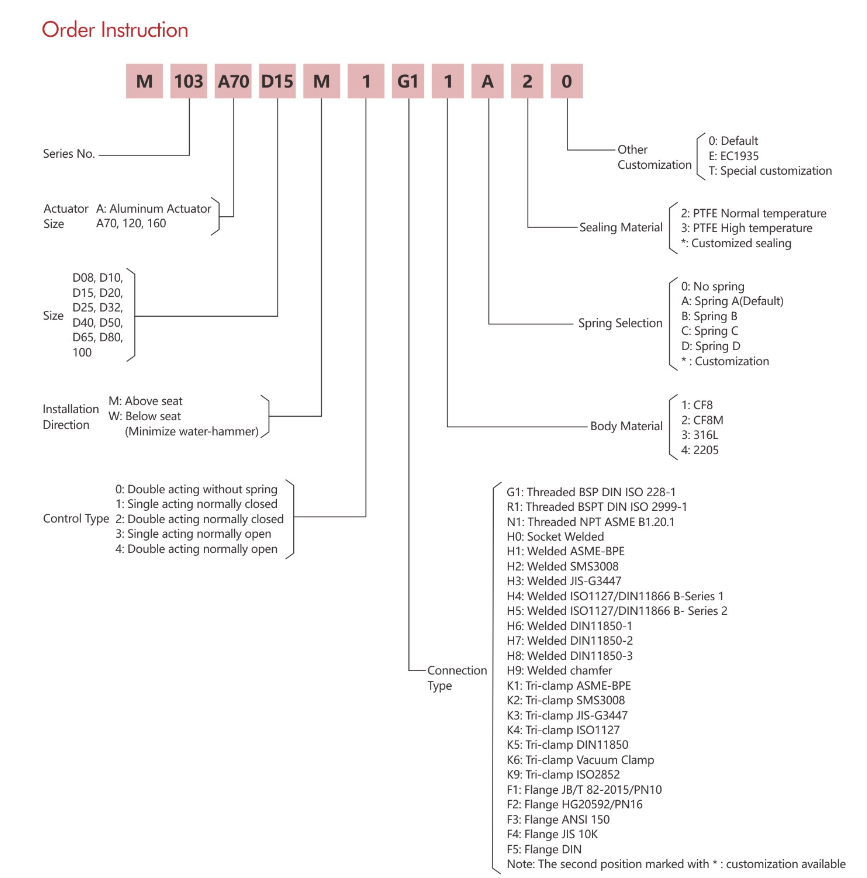

Design Specifications:

Size: DN8-DN100 (1/4’’-4’’).
Connection Type: thread, welded, tri-clamp, flange, other methods for customized consultation.
Valve body: CF8, CF8M, SS316L, 2205
Actuator: Aluminum
Seat seal: PTFE, RPTFE
Stem seal: PTFE,FKM,RPTFE
Piston seal: FKM,NBR
Nominal pressure (working pressure): 0-16bar (0-232Psi), vacuum as low as -0.9bar optional. Control pressure: 2-10bar
Control medium: clean compressed air, lubricated or dry other and neutral gases, inert gas ≤60℃.
Outside temperature (environment): -10℃- 80℃.
Applicable media: water, neutral gas or liquid, alcohol, oil, fuel, steam, organic solvents, acid-base   solutions, etc.
Medium temperature: -10℃- 180℃ (PTFE normal temperature type)
                                       25℃- 220℃ (PTFE high temperature type)
Maximum viscosity: 600cst (mm²/s)
Valve leakage class: DIN EN 12266 Class A



Advantages:

◎Compact structure,high circulation capacity.

◎Simple and quick debugging.

◎The valve stem automatically corrects (self-regulates), self-lubricates, and requires no maintenance.

◎Visible position indicator rod.

◎Extremely suitable for high-frequency switching and quantitative operations.

◎It has excellent adjustment characteristics.

◎The cylinder is made of  aluminum material, which performs exceptionally well in harsh environments, with modular accessory categories, 360° rotation capability, and low maintenance rate. Stainless steel material is particularly durable in steam and corrosive applications; reliable and sturdy sealing components ensure tight sealing and long lifespan.

◎Can be installed in any position (upward, flat, or tilted), with the cylinder standing upright being more suitable.





If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
