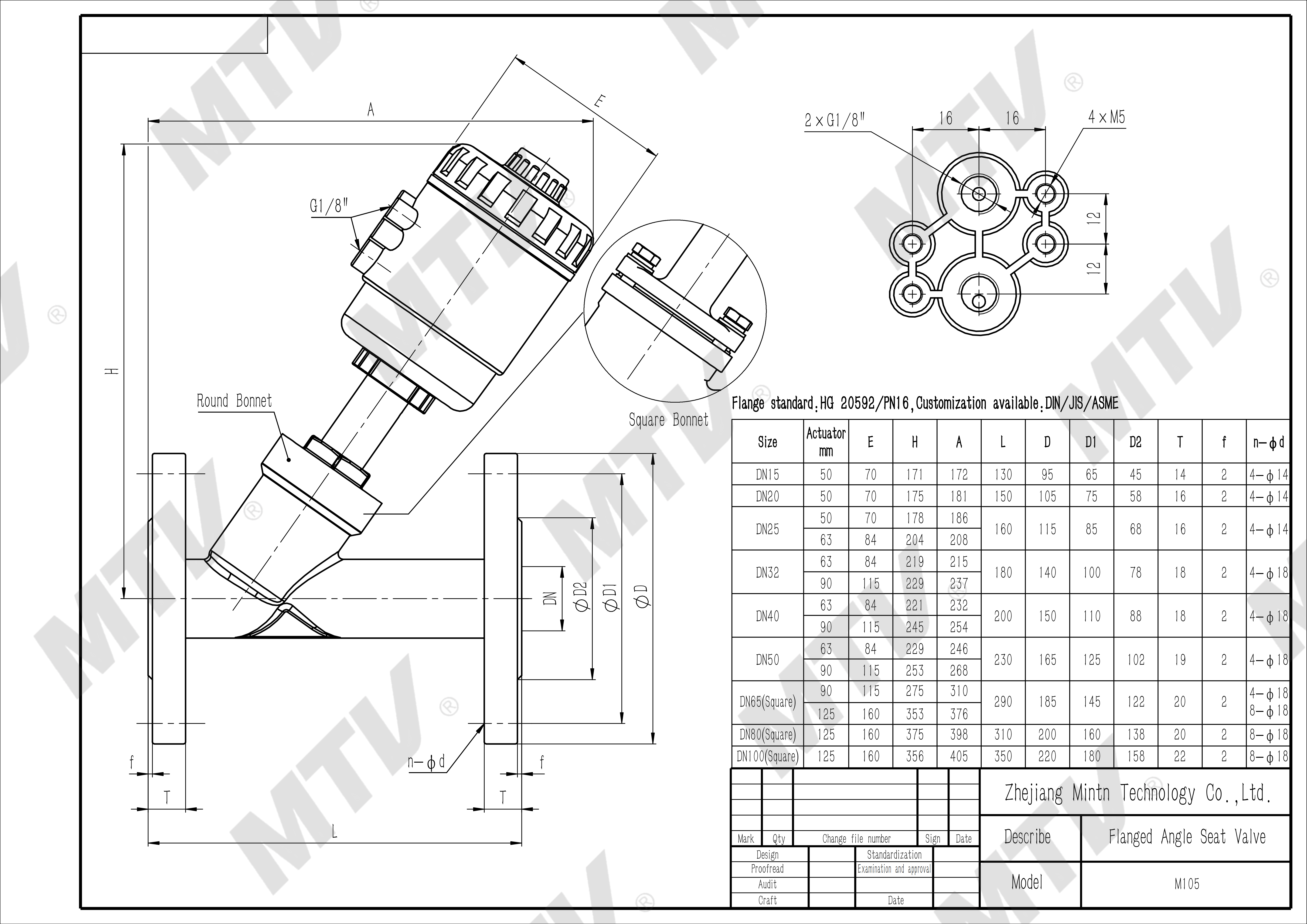

105 Series Plastic Actuator Flanged Angle Seat Valve With intelligent positioner

The Angle seat valve is a 2/2 position structure, driven by a pneumatic piston. It utilizes the actuator piston to provide linear force to push the valve seat away from the valve seat, serving as a type of pneumatic control valve.

Design Specifications:

Size: DN8-DN100 (1/4’’-4’’).
Connection Type: thread, welded, tri-clamp, flange, other methods for customized consultation.
Valve body: CF8, CF8M, SS316L, 2205
Actuator: Plastic
Seat seal: PTFE, RPTFE
Stem seal: PTFE,FKM,RPTFE
Piston seal: FKM,NBR
Nominal pressure (working pressure): 0-16bar (0-232Psi), vacuum as low as -0.9bar optional. Control pressure: 2-10bar
Control medium: clean compressed air, lubricated or dry other and neutral gases, inert gas ≤60℃.
Outside temperature (environment): -10℃- 80℃.
Applicable media: water, neutral gas or liquid, alcohol, oil, fuel, steam, organic solvents, acid-base   solutions, etc.
Medium temperature: -10℃- 150℃
Maximum viscosity: 600cst (mm²/s)
Valve leakage class: DIN EN 12266 Class A



Advantages:

◎Compact structure,high circulation capacity.

◎Simple and quick debugging.

◎The valve stem automatically corrects (self-regulates), self-lubricates, and requires no maintenance.

◎Visible position indicator rod.

◎Extremely suitable for high-frequency switching and quantitative operations.

◎It has excellent adjustment characteristics.

◎Universal module options, including control heads, with valve seats for upstream and downstream flow, facilitating control function conversion. Reliable and sturdy sealing components, good sealing when closed tightly, long lifespan.

◎Can be installed in any position (upward, flat, or tilted), with the cylinder standing upright being more suitable.
