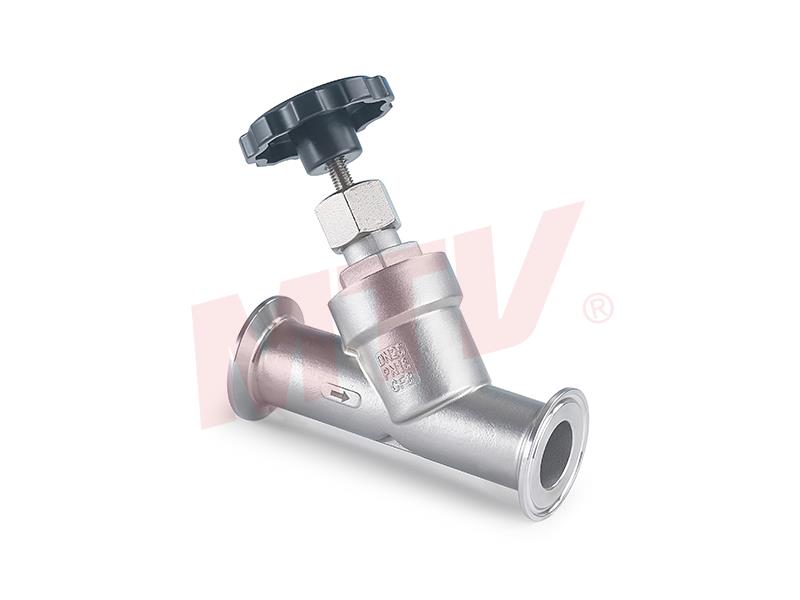

109 Series Manual Tri-Clamp Angle Seat Valve

Size: DN8-DN100 (1/4’’-4’’).
Connection Type: thread, welded, tri-clamp, flange, other methods for customized consultation.
Valve body: CF8, CF8M, SS316L, 2205
Seat seal: PTFE, RPTFE
Stem seal: PTFE,FKM,RPTFE
Piston seal: FKM,NBR
Nominal pressure (working pressure): 0-16bar (0-232Psi), vacuum as low as -0.9bar optional.
Outside temperature (environment): -10℃- 80℃.
Applicable media: water, neutral gas or liquid, alcohol, oil, fuel, steam, organic solvents, acid-base   solutions, etc.
Medium temperature: -10℃- 180℃ (PTFE normal temperature type)
                                       25℃- 220℃ (PTFE high temperature type)
Maximum viscosity: 600cst (mm²/s)
Valve leakage class: DIN EN 12266 Class A

Advantages:
  1. Compact structure, high flow capacity.
  2. Simple and fast adjustment.
  3. Ideal for high-frequency switching and quantitative operation.
  4. Excellent regulating characteristics.
  5. Can be installed in any position (upward, horizontal, or inclined), with the cylinder being more suitable in an upright position.
  6. Utilizes a bottom sealing structure for rapid cleaning and reduced residue.
  7. Flow adjustment cone can be added at the valve core for manual flow control.
