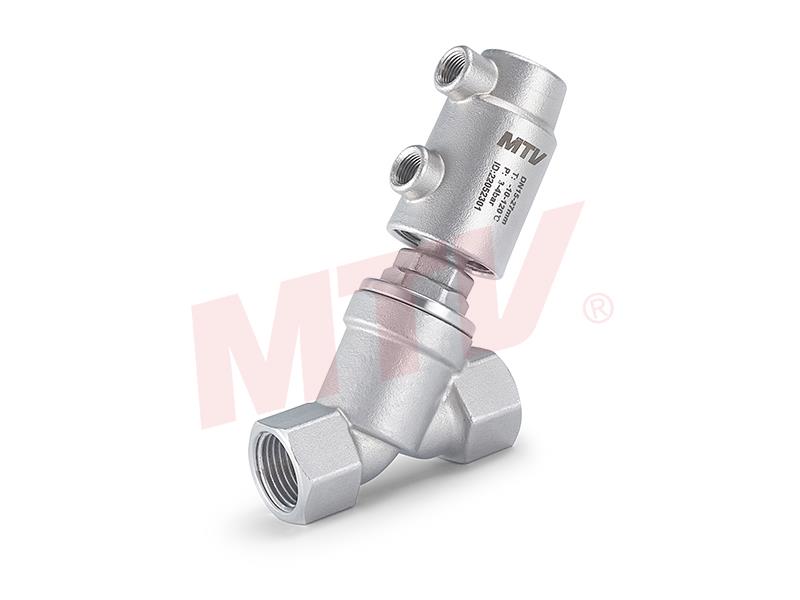

501 Series Pipe-Less Filling Valve

Technical Specifications

Control type: Double-acting free state, double-acting normally closed

Working pressure: 0-7bar (0-102Psi)

Control media: Clean compressed air or neutral gas, temperature ≤60℃.

Control pressure: 3-4.5bar(44-65Psi)

Valve body material: CF8,CF8M

Sealing material: PTFE

Applicable media: Water, neutral gas or liquid, alcohol, oil, fuel, steam, organic solvents, acid and Acid-base solution, etc.

Medium temperature: -10℃~ 120℃

Ambient temperature: -10℃~ 80℃

Connection type: Threaded (BSP,BSPT,NPT)

Advantages

1. The valve adopts a refined design, all parts are made of stainless steel, the appearance is exquisite, the control form parts are light, the structure is compact and the sealing performance is excellent.
2. The valve core part adopts an active valve core, which can be self-corrected, and the sealing performance is excellent.
