HomeProductsPneumatic Coaxial Valve601 Pneumatic Coaxial Valve 601 Pneumatic Threaded Coaxial Valve With magnetic switch

601 Pneumatic Threaded Coaxial Valve With magnetic switch

The coaxial valve adopts an integrated structure of the valve body and actuator: the actuator is aligned with the axis of the fluid pipeline (in the direction of fluid flow), maximizing space savings, and minimizing the influence of fluid pressure differentials on valve opening pressure.
Inquiry Download

Product Description

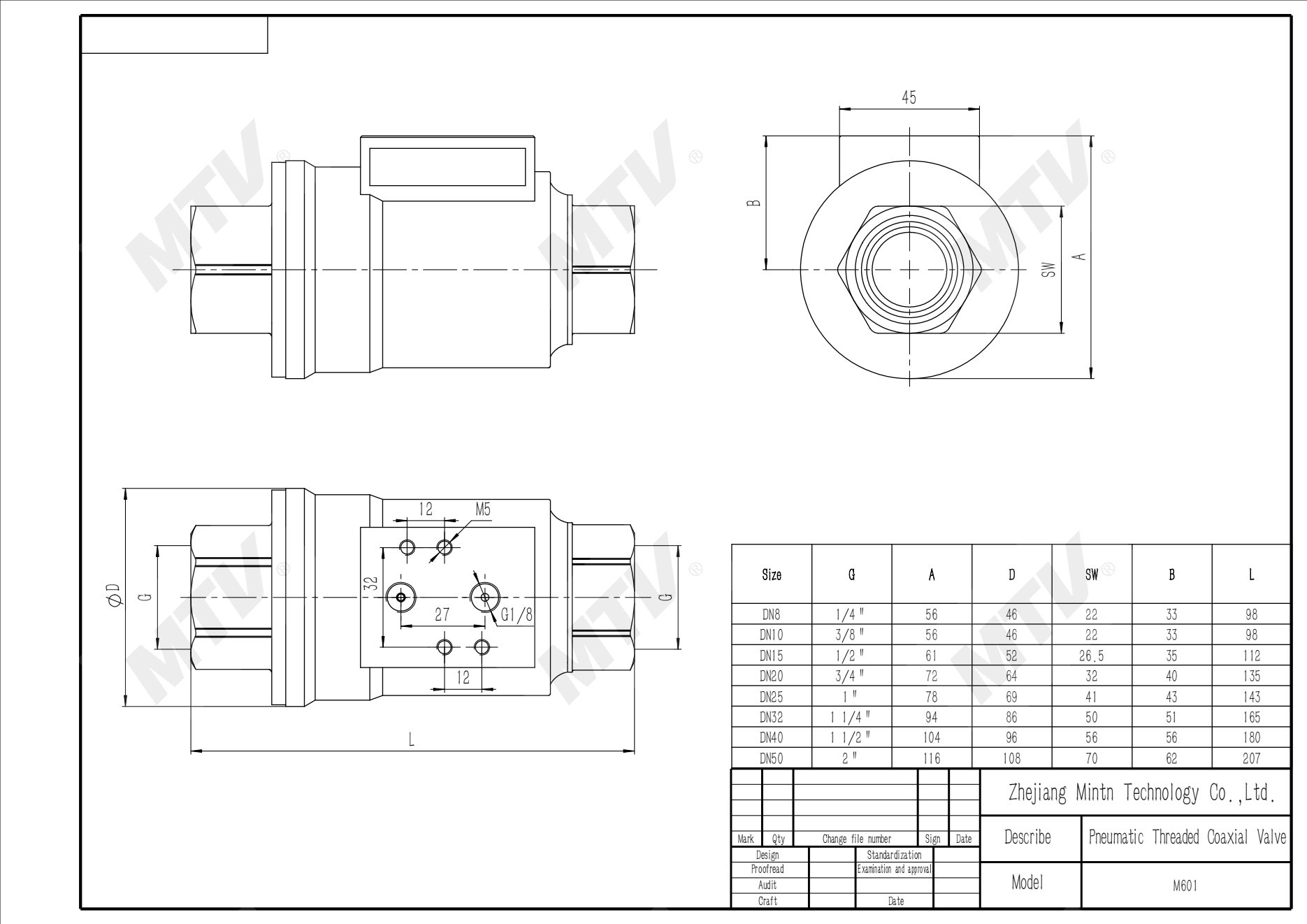

Technical Drawings

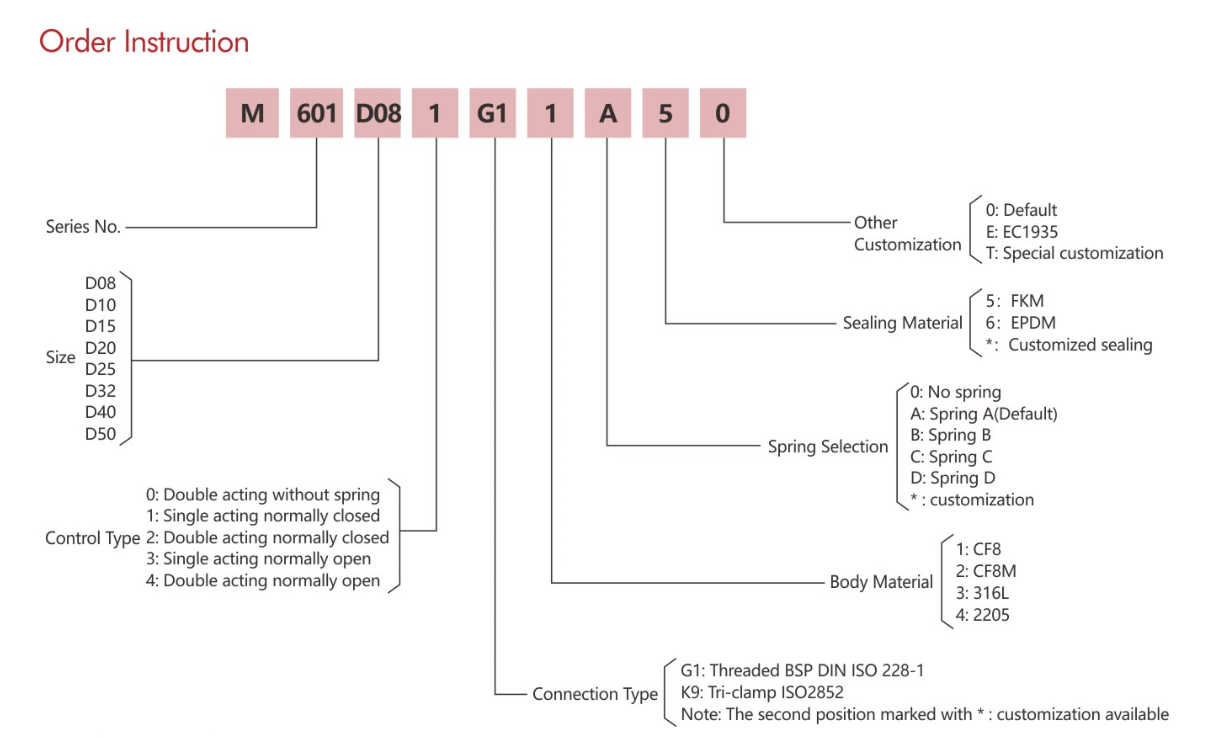

Order Instruction

Technical Specification

Size: DN10-DN50

Switch indication: Red LED

Operating voltage range: 10-30VDC

Maximum switch current: 100mA Power cord: 2-wire, gray oil-resistant PVC

Operating temperature: -10℃~ 70℃

Protection level: IP67

Leakage level: DIN EN 12266 Grade A



The 601 series coaxial valve can be installed with a 2-position 5-way or 2-position 3-way solenoid valve as shown in the figure (universal NAMUR interface).
