HomeProductsPneumatic Coaxial Valve601 Pneumatic Coaxial Valve 601 Pneumatic Threaded Coaxial Valve With solenoid valve

601 Pneumatic Threaded Coaxial Valve With solenoid valve

The coaxial valve adopts an integrated structure of the valve body and actuator: the actuator is aligned with the axis of the fluid pipeline (in the direction of fluid flow), maximizing space savings, and minimizing the influence of fluid pressure differentials on valve opening pressure.
Inquiry Download

Product Description

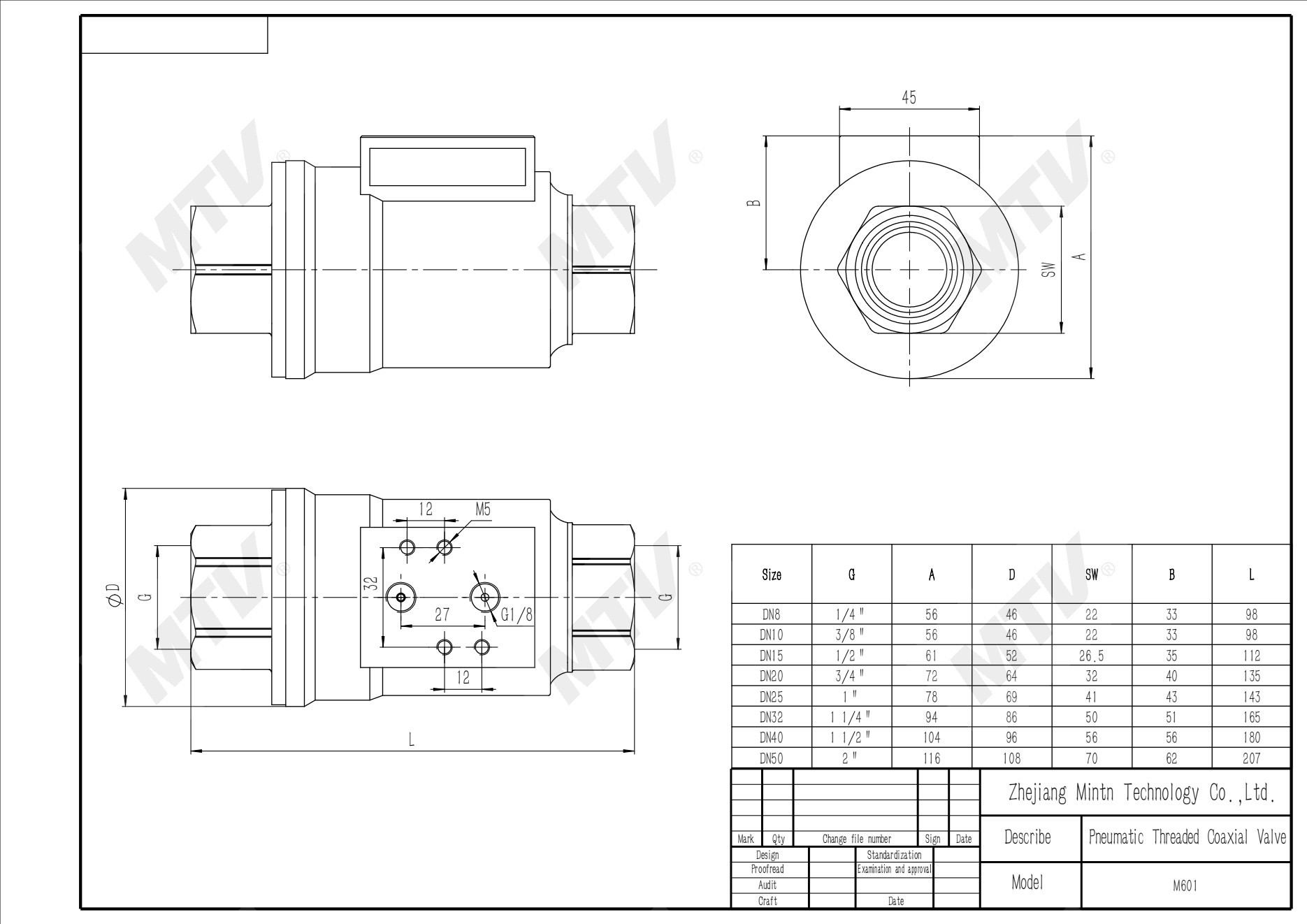

Technical Drawings

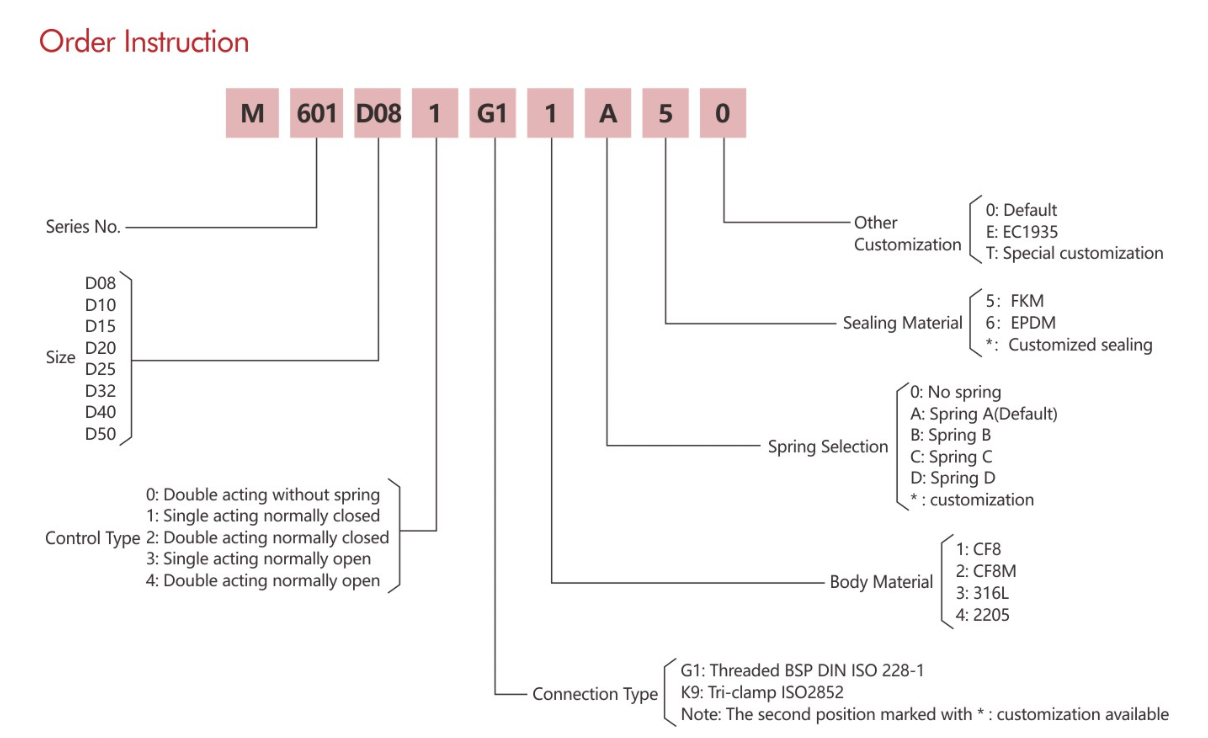

Order Instruction

Technical Specification

Interface: G1/4"

Control pressure: 3-8bar (43.5-116Psi)

Power supply: 220VAC/24VDC

Voltage range: ±10%

Power consumption: AC 4.5W/DC3W

Ambient temperature: 5℃~ 55℃

Maximum operating frequency: 3 times/second

Protection level: IP65

Leakage level: DIN EN 12266 Grade A
