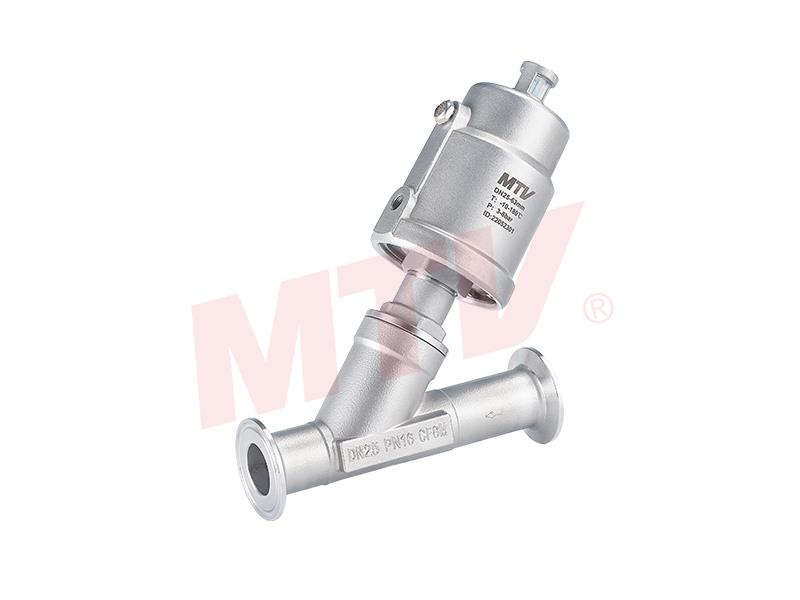

MT-K3 Pneumatic Angle Seat Valve

Inquiry Download

Technical Drawings

Design Specifications:

Size: DN8-DN80 (1/4’’-3’’).
Connection Type: thread, welded, tri-clamp, flange, other methods for customized consultation.
Valve body: CF8, CF8M
Actuator: stainless steel
Seat seal: PTFE
Stem seal: PTFE,FKM
Piston seal: FKM,NBR
Nominal pressure (working pressure): 0-16bar (0-232Psi), vacuum as low as -0.9bar optional.
Control pressure: 2-10bar
Control medium: clean compressed air, neutral gases, inert gas ≤60℃.
Outside temperature (environment): -10℃~ 80℃.
Applicable media: water, neutral gas or liquid, alcohol, oil, fuel, steam, organic solvents, acid-base   solutions, etc.
Medium temperature: -10℃- 180℃ (PTFE)
Maximum viscosity: 600cst (mm²/s)
Valve leakage class: DIN EN 12266 Class A
