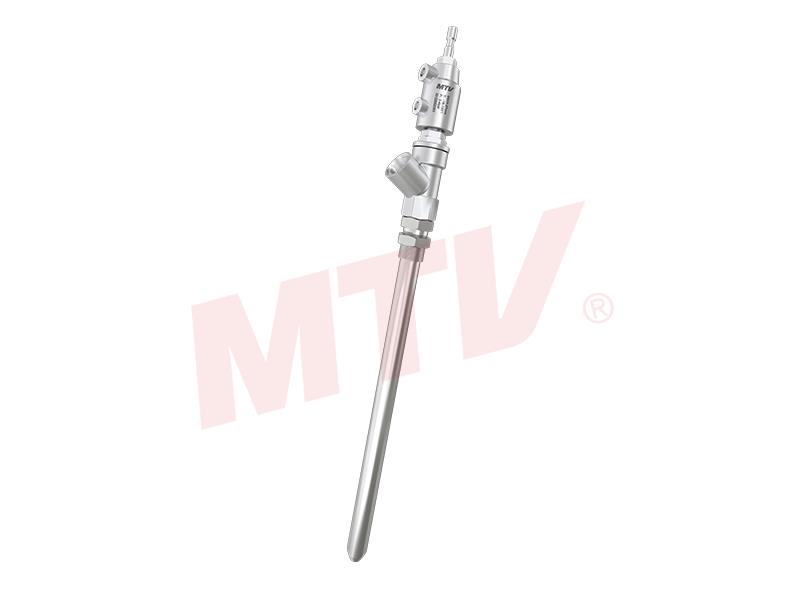

514 Filling Valve With External Sealing and Suction

Technical Specifications



Control type: Double-acting free state, double-acting normally closed

Working pressure: 0-7bar (0-102Psi)

Control media: Clean compressed air or neutral gas, temperature ≤60℃.

Control pressure: 3-4.5bar(44-65Psi)

Valve body material: CF8,CF8M

Sealing material: PTFE

Applicable medium: Water, neutral gas or liquid, alcohol, oil, fuel, steam, organic solvents, acid and Acid-base solution, etc.

Medium temperature: -10℃~ 120℃

Ambient temperature: -10℃~ 80℃

Connection type: Threaded (BSP,BSPT,NPT)



Advantages

  1. It is widely used in filling machinery, especially for applications with viscous, pasty and even foamy fluids.
  2. Fast, accurate and stable filling.
  3. Delicate and compact, easy to arrange pipeline layout.
  4. Special nozzle structure and sealing design ensure no dripping leakage.
  5. Bottom chamfer structure of the filling nozzle self-locates and enables submerged filling.
  6. The head gourd shape design of the filling tube reduces weight and cost without sacrificing flow rate.
  7. With super strong suction function, it can timely recover the liquid sliding down the pipe wall without dripping.
