Pneumatic Globe Valve: Working Principle, Applications and Selection Guide

Reliable flow control is essential in many industrial process systems. When a pipeline requires precise shut-off and automatic control, a pneumatic globe valve can provide an effective solution.

A pneumatic globe valve combines the flow-control structure of a globe valve with a pneumatic actuator. By using compressed air as the power source, the valve can be integrated with automatic control systems and operated remotely.

What Is a Pneumatic Globe Valve?

A pneumatic globe valve is an industrial valve designed to control or shut off the flow of a medium through a pipeline.

Unlike a conventional manually operated globe valve, the pneumatic version uses a pneumatic actuator to move the valve stem. This allows the valve to respond automatically to control signals from a PLC or other automation system.

Depending on the valve design and application, pneumatic globe valves can be used for liquids, gases, steam, and other compatible industrial media.

How Does a Pneumatic Globe Valve Work?

When compressed air enters the pneumatic actuator, the actuator generates mechanical force and moves the valve stem.

The movement of the valve stem changes the position of the valve disc relative to the valve seat, controlling the flow through the valve.

When the actuator receives the appropriate control signal, the valve can open, close, or regulate the process according to the system requirements.

This pneumatic operating principle makes globe valves suitable for industrial systems where automatic and reliable valve operation is required.

Applications of Pneumatic Globe Valves

Pneumatic globe valves are used across a wide range of industrial applications, including:

• Steam and heating systems

• Water treatment equipment

• Chemical processing

• Food and beverage equipment

• Pharmaceutical machinery

• Textile machinery

• Industrial automation

• Process control systems

For steam and high-temperature applications, the valve body, sealing materials, and actuator configuration should be selected according to the actual working temperature and pressure.

Key Factors When Selecting a Pneumatic Globe Valve

Choosing the correct pneumatic globe valve requires more than simply selecting the pipe size.

Important factors include:

Working Medium
Identify whether the valve will control water, air, steam, oil, gas, or another industrial medium.

Pressure and Temperature
The valve's pressure and temperature range should match the actual operating conditions.

Valve Size
Correct valve sizing helps achieve the required flow capacity while avoiding unnecessary pressure loss.

Material
Stainless steel valve bodies can be considered for applications requiring good corrosion resistance and durability.

Connection Type
Threaded, flanged, welded, or other connection options can be selected according to the pipeline design.

Actuator Configuration
The pneumatic actuator should provide sufficient force for reliable valve operation under the actual pressure conditions.

Pneumatic Globe Valve vs. Other Industrial Valves

Different industrial valves are designed for different purposes.

A pneumatic globe valve is particularly suitable when reliable shut-off and flow control are required. A pneumatic angle seat valve may be preferred for applications requiring high flow capacity and fast switching, while a pneumatic coaxial valve can be considered for certain gas and fluid control applications where a compact and direct flow path is advantageous.

Therefore, valve selection should always be based on the actual working conditions and process requirements.

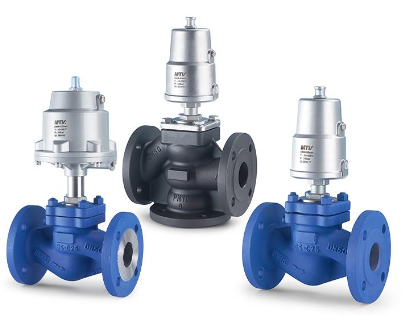

MINTN Pneumatic Globe Valve Solutions

MINTN develops and manufactures pneumatic control valves for industrial automation and process equipment, including pneumatic globe valves, pneumatic angle seat valves, pneumatic coaxial valves, and other industrial valve solutions.

Our pneumatic globe valve solutions can be configured according to different application requirements, including valve size, body material, connection type, actuator configuration, and sealing materials.

Through professional manufacturing and strict quality control, MINTN provides reliable pneumatic valve solutions for equipment manufacturers and industrial customers worldwide.

For customers looking for a pneumatic globe valve manufacturer or pneumatic valve supplier, selecting the correct valve according to the working medium, pressure, temperature, flow requirements, and control method is essential for achieving stable and long-term system performance.
